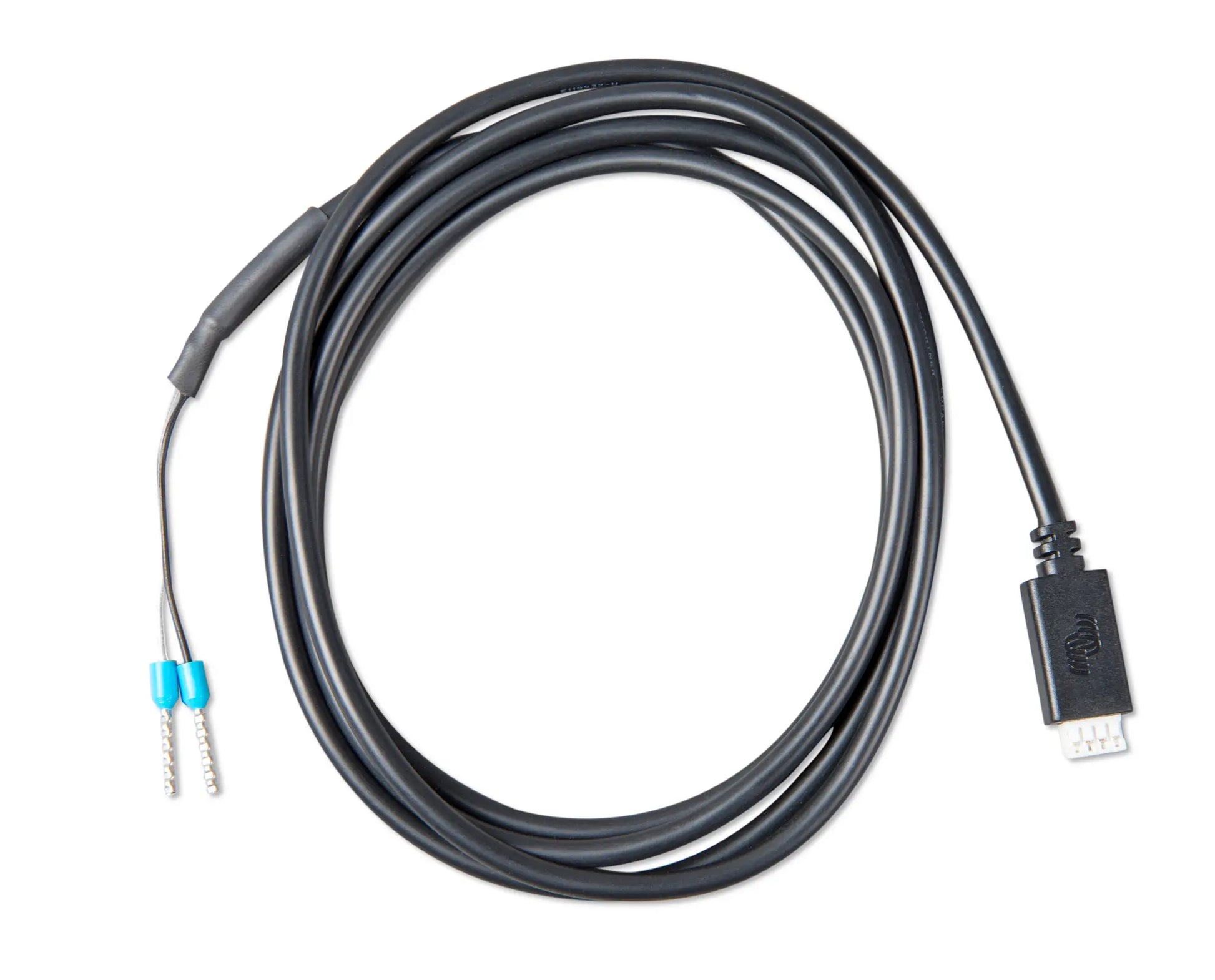

• Coiled cable with connectors on a white background

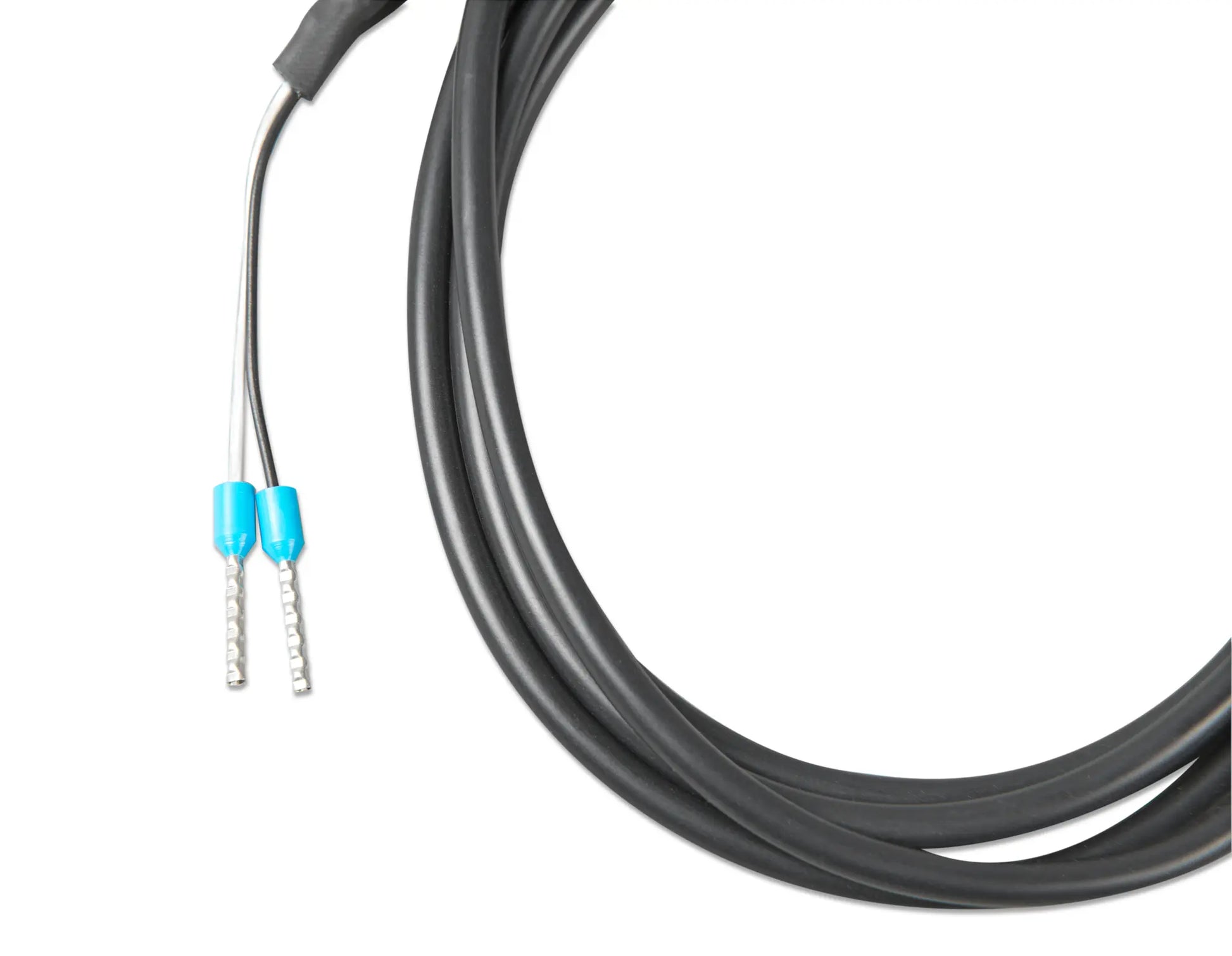

  • Coiled cable with blue connectors on a white background

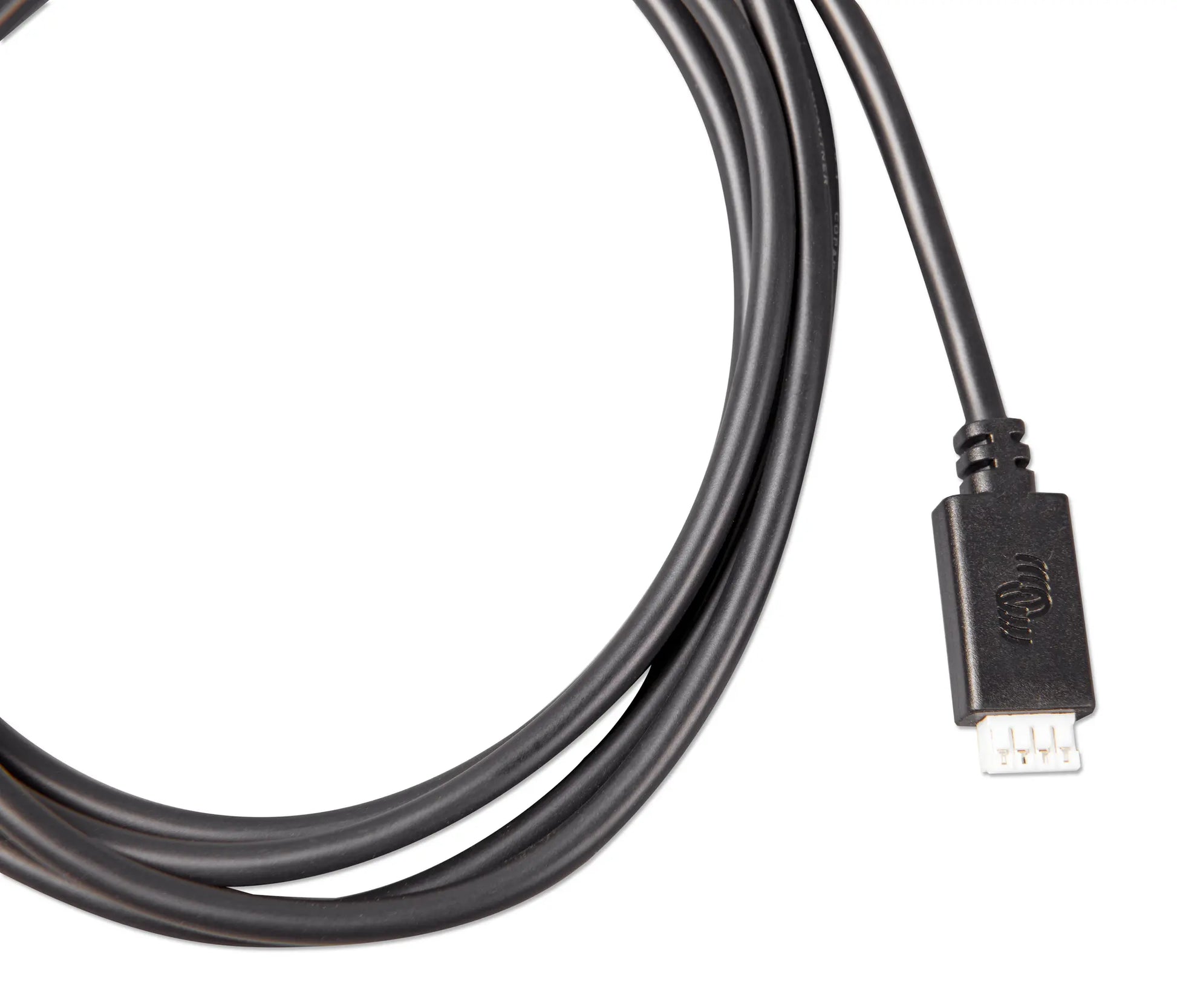

  • Black cable with a connector on a white background
1 3

All About Power

VE.Direct TX Digital Output Cable

VE.Direct TX Digital Output Cable

£9.75 GBP
£9.75 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

IF PRODUCT IS OUT OF STOCK PLEASE CALL 01590 679418 OR EMAIL TO COMPLETE YOUR ORDER AND OBTAIN LATEST LEAD TIMES

The VE.Direct TX digital output cable can be used in combination with the BlueSolar and SmartSolar MPPT chargers. It supports the following applications:

  • Solar lighting applications
  • Virtual load output

Lighting Applications

The cable is designed for lighting applications in solar energy systems.
Energy consumption can be significantly reduced by the ability to dim lighting when needed. Lower power consumption will reduce the overall system cost. Also, the availability of the lighting will increase, even in case of a partially charged battery in low sun.
The cable connects the TX output of the VE.Direct connector of a MPPT charger with the PWM dimmer input of the LED driver.

Virtual load output

The cable is designed for adding load output functionality to the larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct connector of a MPPT charger with a battery protect or a solid state relay to switch a load on or off.



Specification

Brand

Victron Energy
Manufacturer Part Number

ASS030550500
