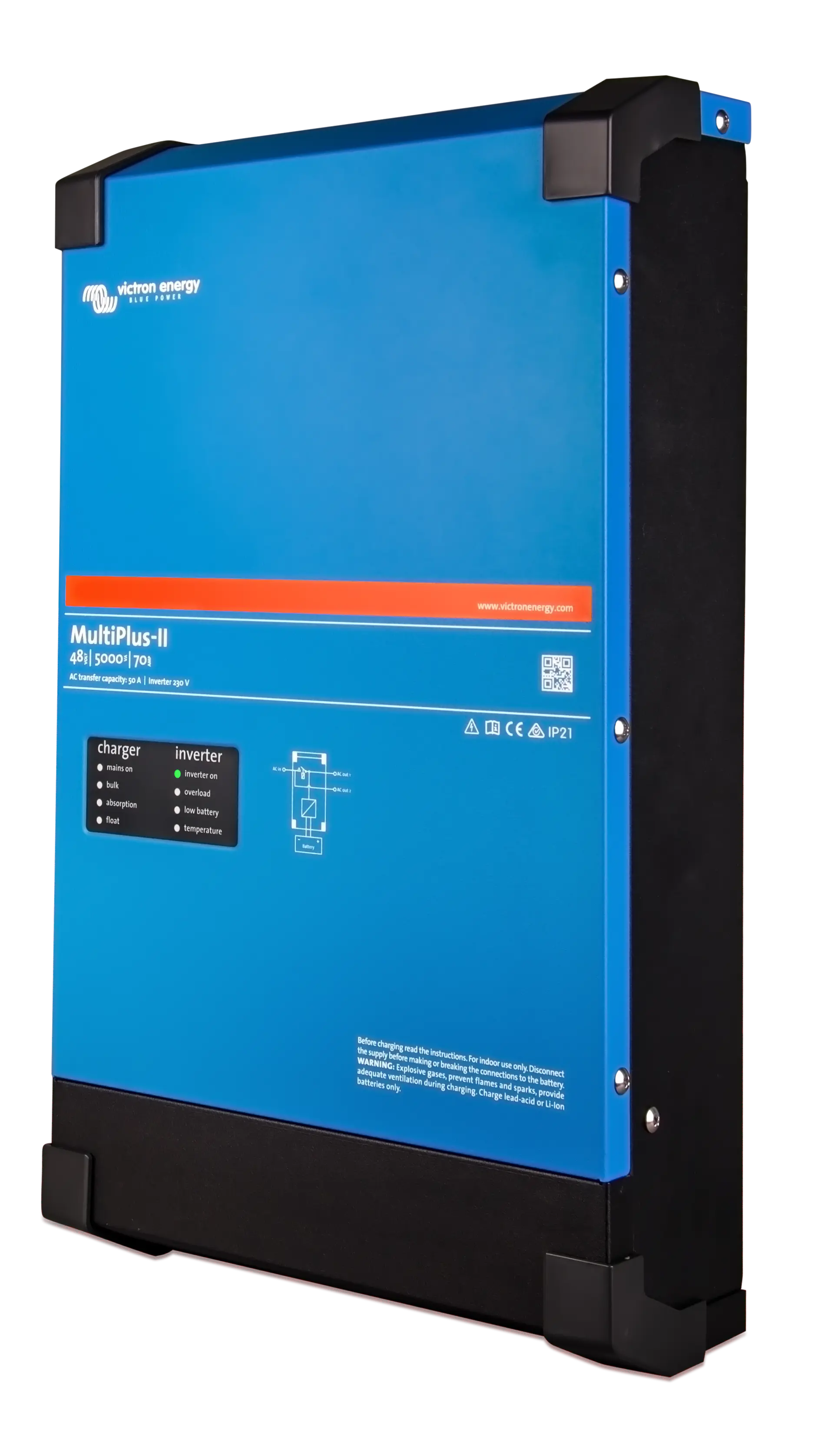

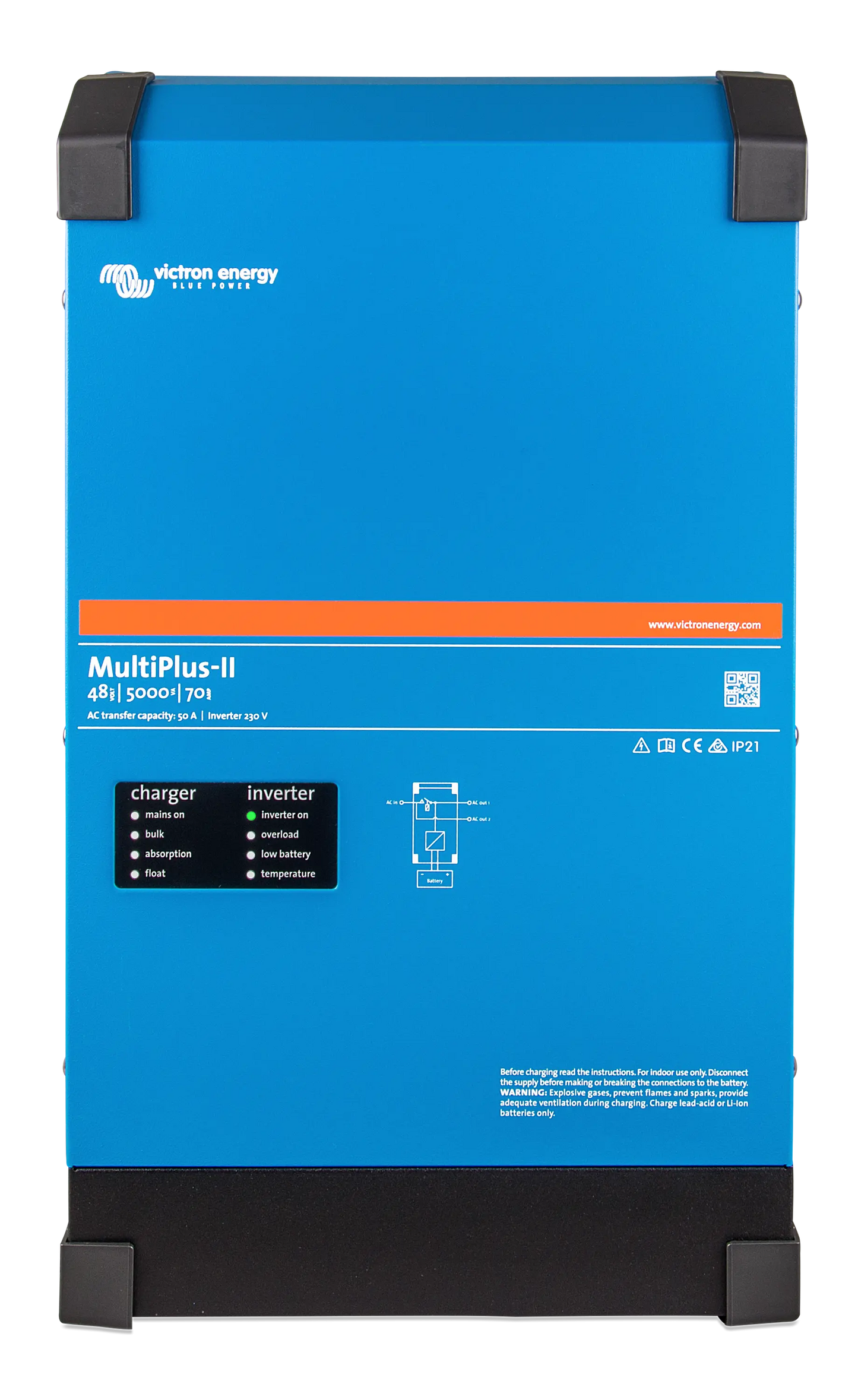

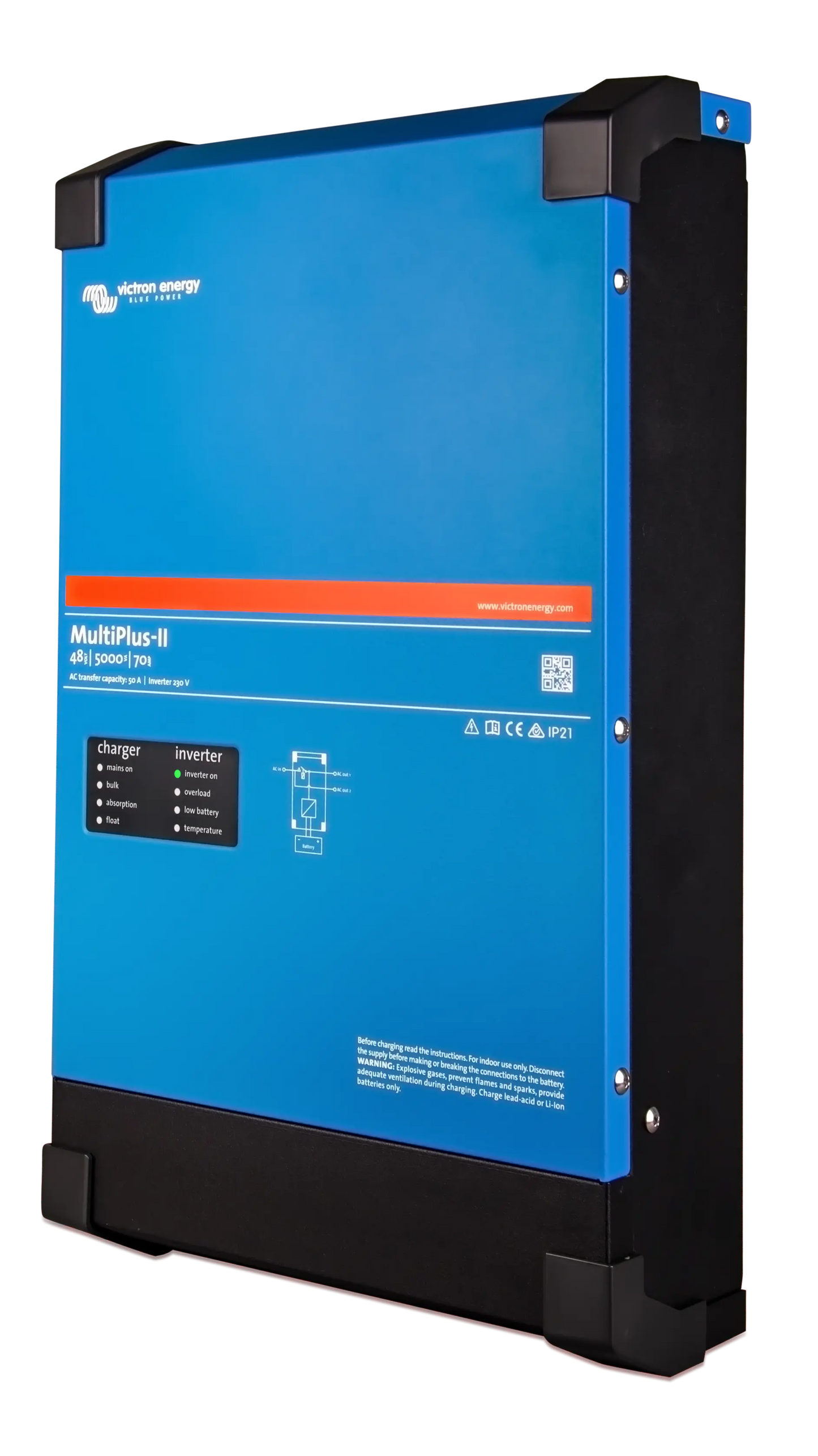

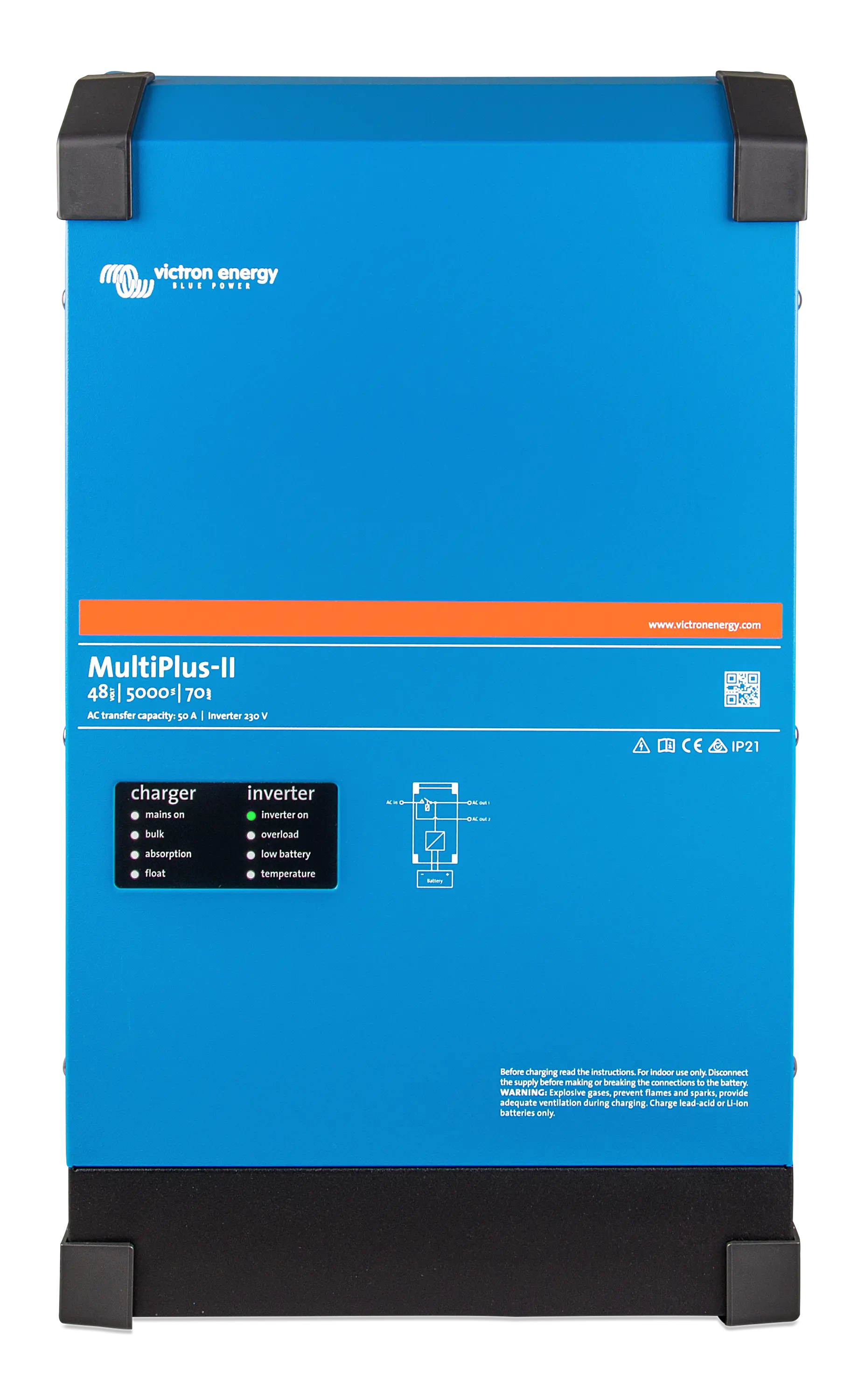

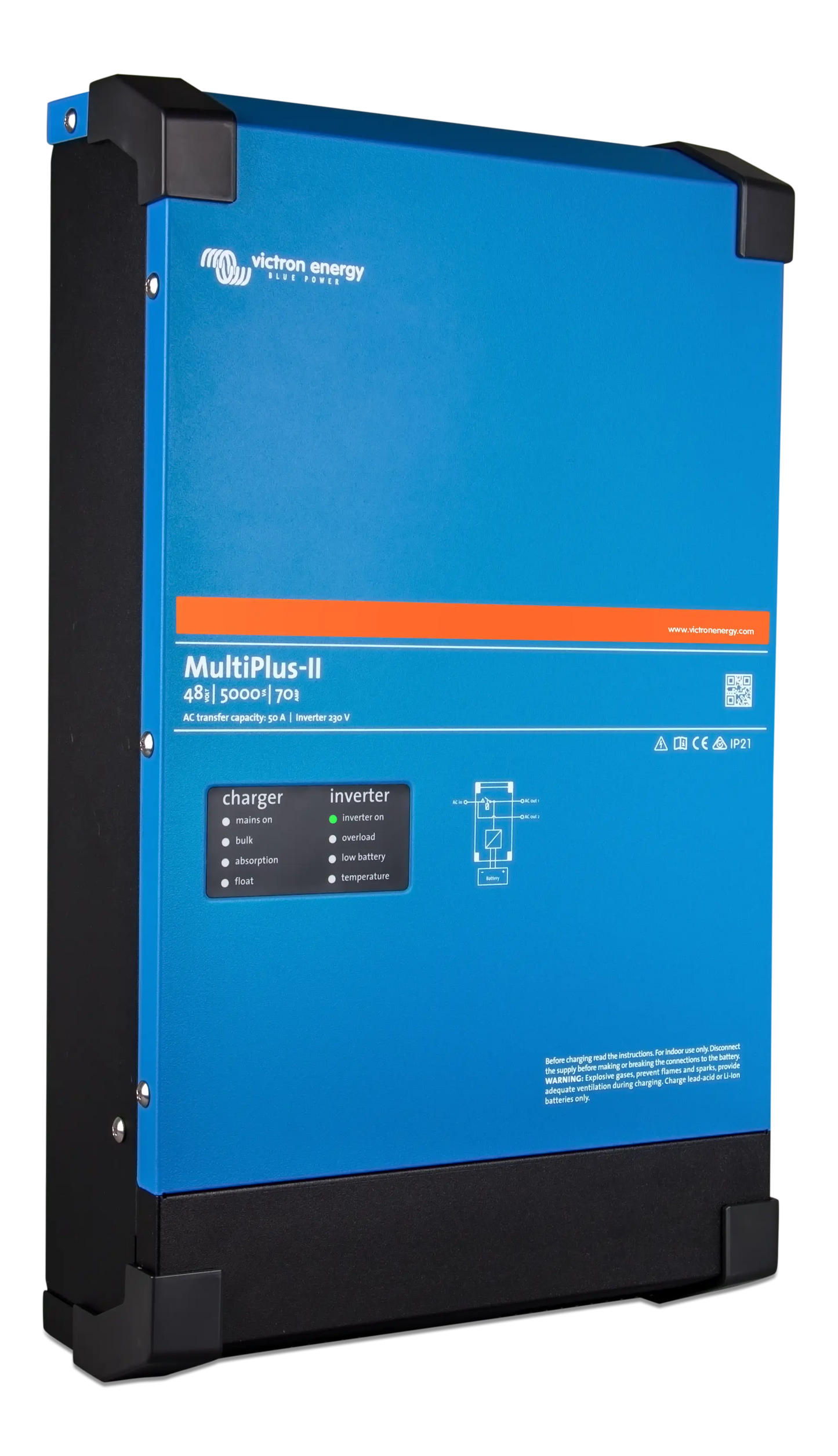

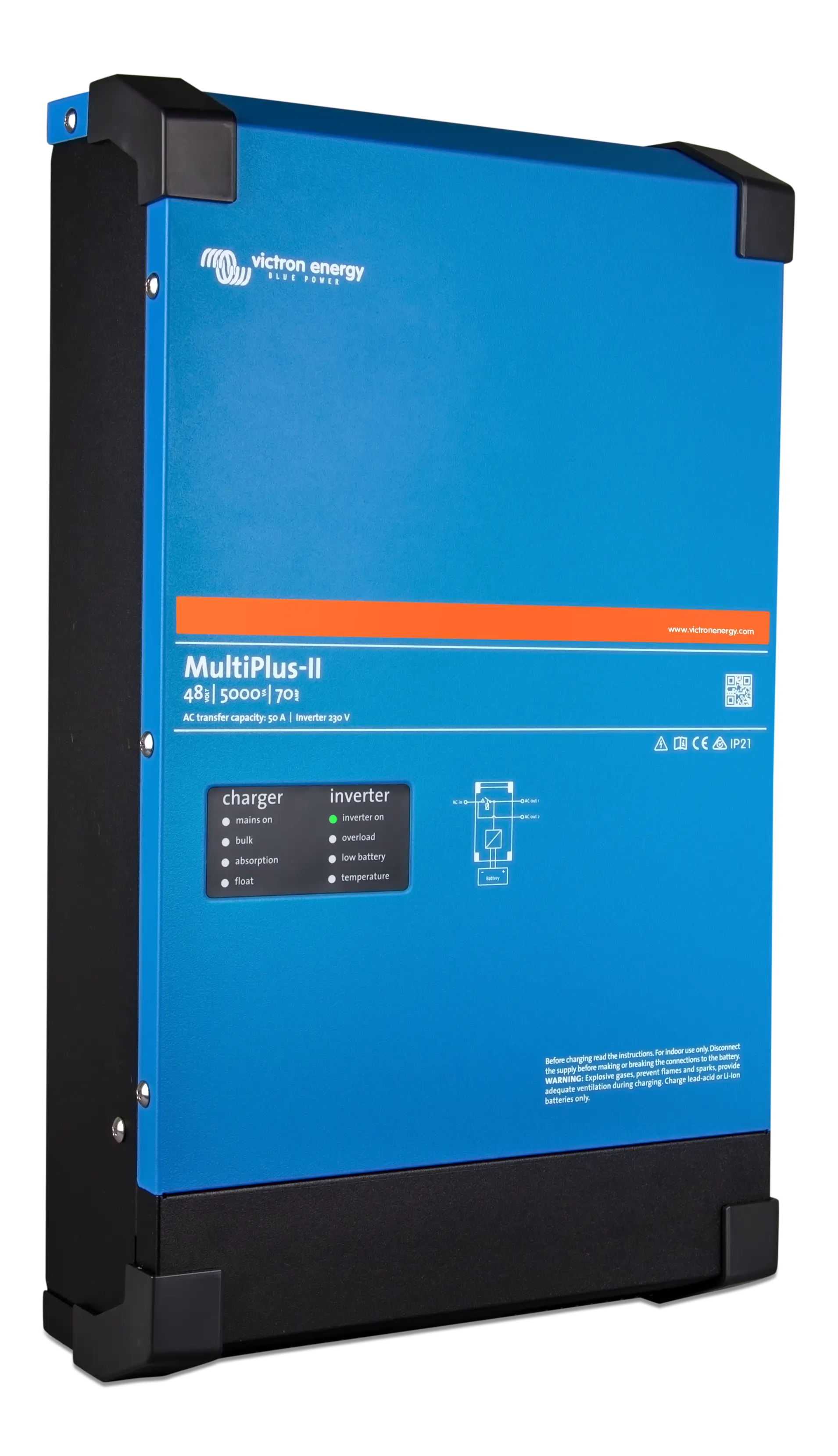

MultiPlus-II 48/5000/70-50 230V GX

An Inverter/Charger with device networking built-in, the MultiPlus-II 48/5000 GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

Features of the MultiPlus-II 48/5000 GX

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II 48/5000 GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

A USB port.

A Ethernet port.

A VE.Direct port.

Applications

The MultiPlus-II 48/5000 GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

When coupled with a Cerbo GX you can monitor and control your MultiPlus-II 48/5000 GX and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…”

If you want to access directly, use the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability.
