MultiPlus-II 24/3000/70-32 230V GX

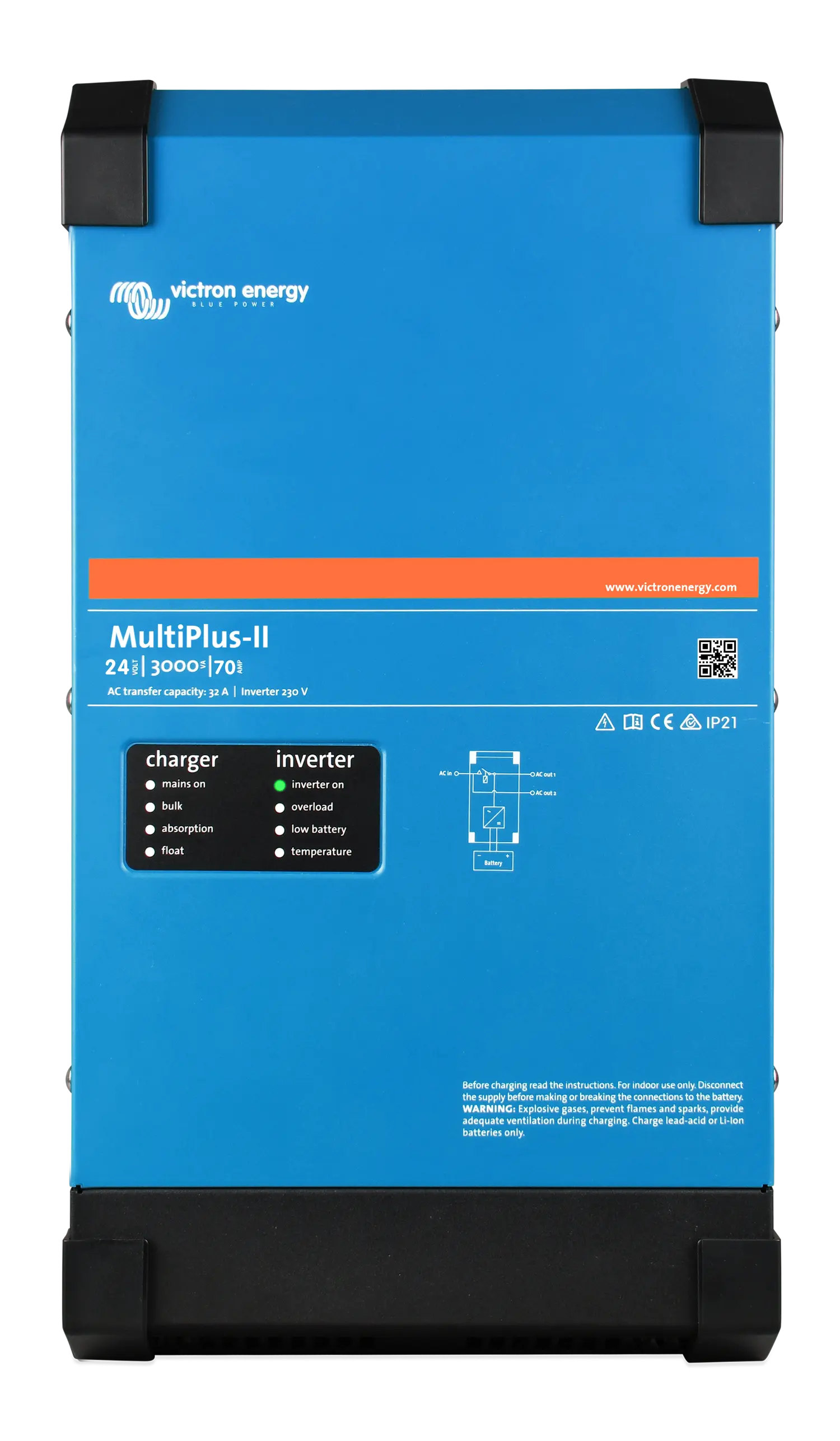

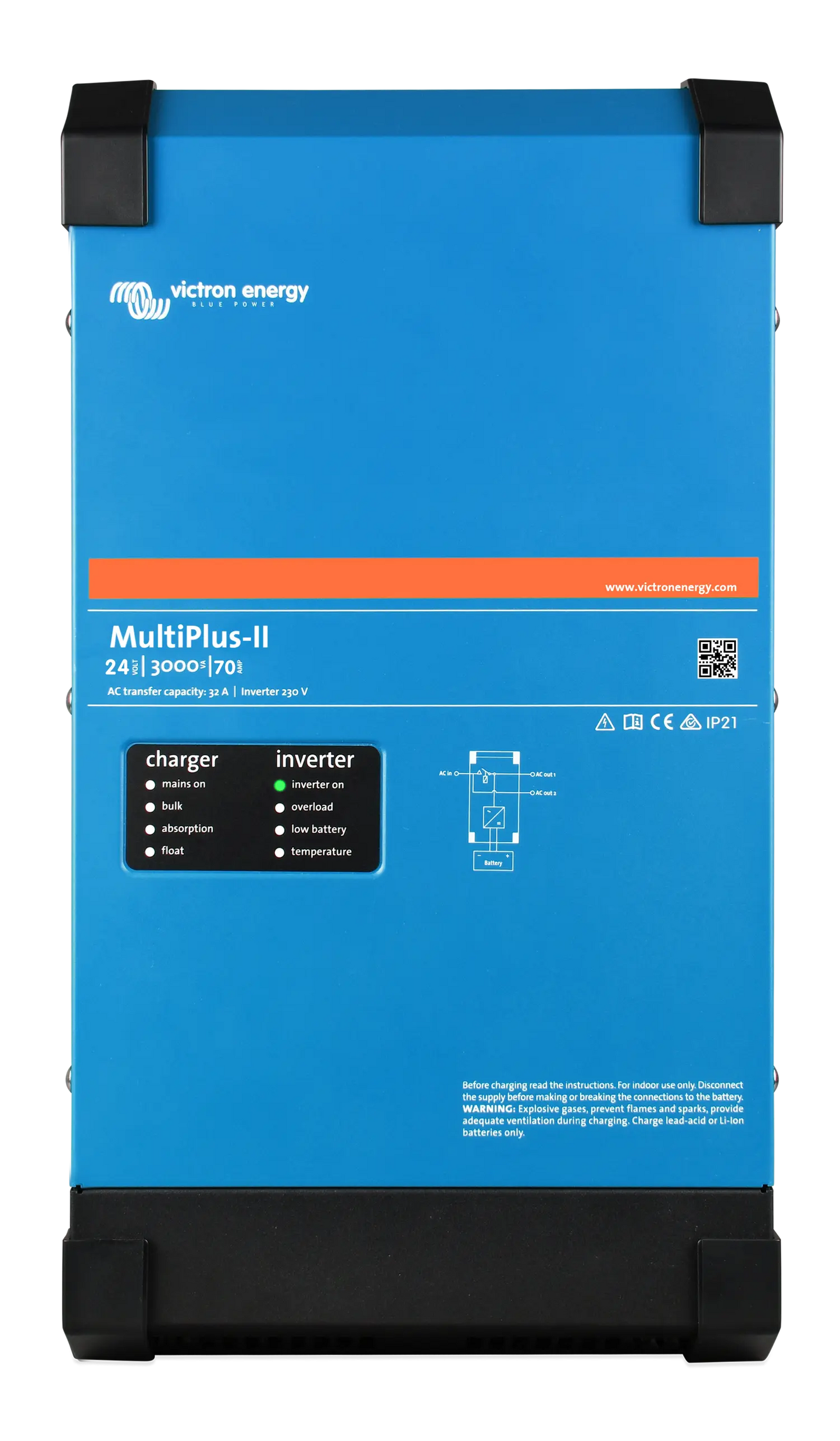

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters.

The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port.
• A Ethernet port.
• A VE.Direct port.

Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

MultiPlus 24/3000 70-32

• PowerControl / PowerAssist Yes
• Transfer switch 32A
• Maximum AC input current 32A
• Auxiliary output Yes (32 A)

Inverter

• Input voltage range 19-33 V
• Output Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1% (1)
• Cont. output power at 25°C(3) 3000 VA
• Cont. output power at 25°C 2400 W
• Cont. output power at 40°C 2200 W
• Cont. output power at 65°C 1700 W
• Maximum apparent feed-in power 3000 VA
• Peak power 5500 W
• Maximum efficiency 94%
• Zero-load power 13w
• Zero load power in AES mode 9 W
• Zero-load power in search mode 2W

Charger

• AC Input Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
• Charge voltage ‘absorption’ 28,8 V
• Charge voltage ‘float’ 27,6 V
• Storage mode 26,4 V
• Maximum battery charge current (4) 70 A
• Battery temperature sensor Yes

General

• Interfaces BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
• External AC current sensor (optional) 50 A
• Programmable relay (5) Yes
• Protection (2) a – g
• VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
• General purpose com. port Yes 2x
• Remote on-off Yes
• Operating temperature range -40 to +65 °C (fan assisted cooling)
• Humidity (non-condensing) max 95 %

Enclosure

• Common Characteristics Material & Colour: Steel/ABS (blue RAL 5012)
• Protection category: IP 21
• Battery-connection M8 Bolts
• 230V AC-connection Screw terminals 13 mm² (6 AWG)
• Weight 20 kg
  Dimensions (h x w x d) 506 x 275 x 147 mm

Standards

• Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
• Emission Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Uninterruptible power supply IEC 62040-1
• Anti-islanding Please consult the certificates on Victron Energy website.

Notes

1) Can be adjusted to 60 Hz

2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high

3) Non-linear load, crest factor 3:1

4) Up to 25 °C ambient

5) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230 V / 4 A, DC rating: 4 A up to 35 VDC and 1 A up to 60 VDC

Click here for MultiPlus-II Datasheet.
