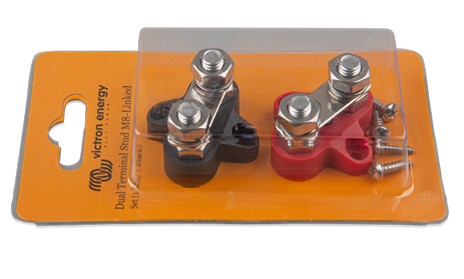

  • Two battery terminals with a red clip on a clear plastic card with orange backing, featuring 'Victron Energy' branding.
1 2

All About Power

Dual Terminal Stud M8-Linked Set (1 red 1 black)

Dual Terminal Stud M8-Linked Set (1 red 1 black)

£18.84 GBP
£18.84 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

IF PRODUCT IS OUT OF STOCK PLEASE CALL 01590 679418 OR EMAIL TO COMPLETE YOUR ORDER AND OBTAIN LATEST LEAD TIMES

Victron’s dual power distribution post is designed to connect electrical power runs, distribute power to separate locations, and to condense ground leads to a central location. They are rated up to 150 amps and can handle up to 70VDC.

Dual terminal stud M8 (5/16″)

  • Max.current: 150A
  • Max. Voltage70: VDC
  • Terminal diameter: M8 (5/16 inch)
  • Terminal height: 17mm/ 0.67 inch
  • Terminal material: Stainless steel
  • Hex nut material: Stainless steel
  • Recommended torque: 10 N-m/ 90lbf-inch
  • Busbarstrip material: Tin-platedcopper(1.0x 13mm)
  • Base material: Glass fiber reinforced nylon



Specification

Brand

Victron Energy
Manufacturer Part Number

VBB413020010
gtin

8719076052241
Dimensions

H45 × W43 × D32mm
Weight

0.13Kg





Click here for Dual Terminal Stud M8 Datasheet.
