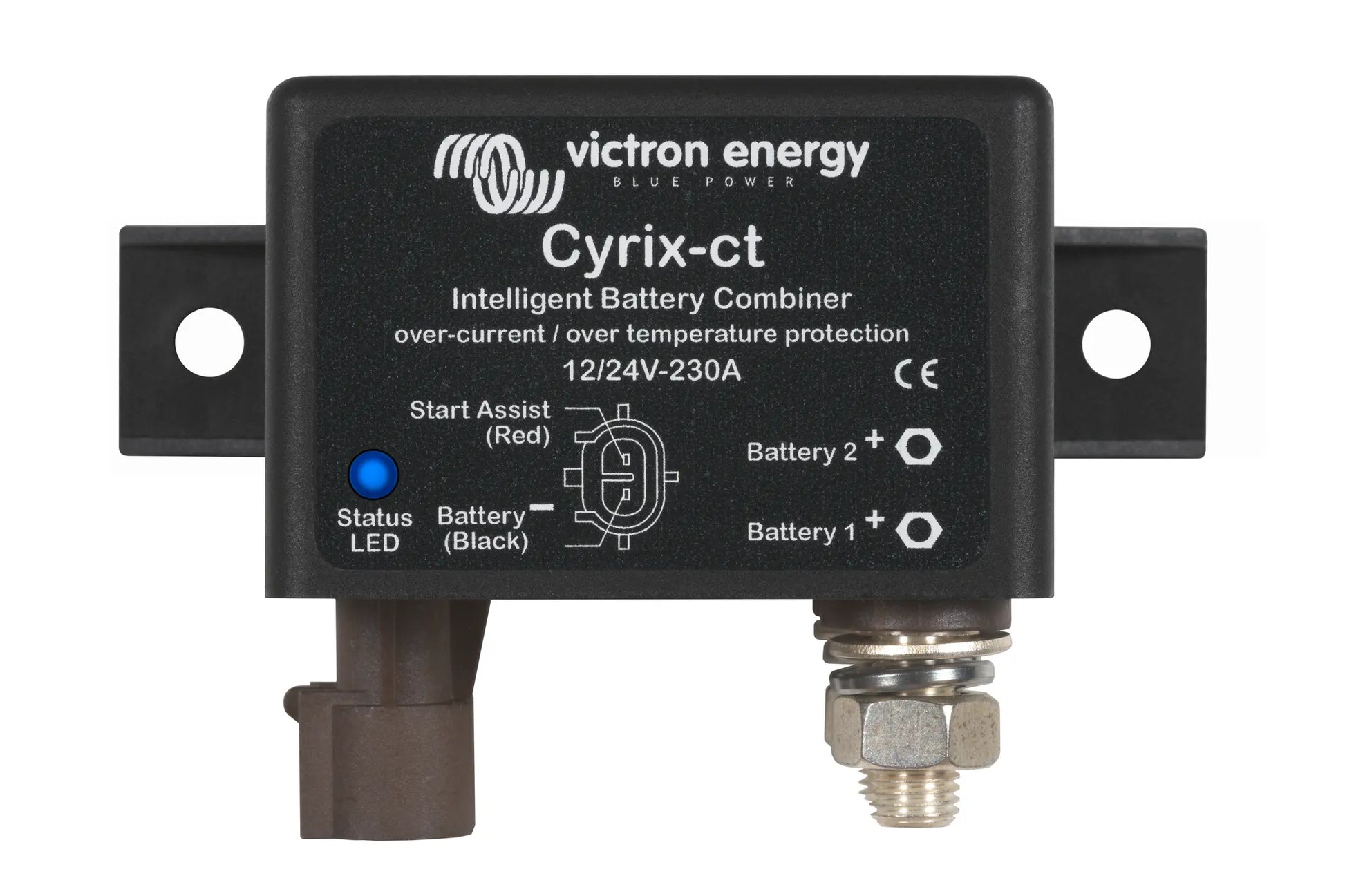

• Victron Energy Cyrix-ct battery combiner on a white background
1 1

All About Power

Cyrix-Li-ct 12/24V 230A

Cyrix-Li-ct 12/24V 230A

£121.80 GBP
£121.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

IF PRODUCT IS OUT OF STOCK PLEASE CALL 01590 679418 OR EMAIL TO COMPLETE YOUR ORDER AND OBTAIN LATEST LEAD TIMES
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.

The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:
  • if the charge disconnect output of the VE.Bus BMS is high, and
  • if it senses 13,4 V (resp. 26,8 V) or more on one of its power terminals
The Cyrix will disengage immediately:
  • when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
  • when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.


Specification

Protection Category

IP54
Manufacturer Part Number

CYR010230412
Weight (kg)

0.27

Dimensions

H65 x W100 x D50mm
Brand

Victron Energy
LED Status Indication

Yes
Control Cable Included (Length 1 m)

Yes
Current Consumption When Open

4 mA
Continuous current & Breaking capacity at 12V or 24V

230A
Voltage

12/24





Click here for Cyrix-Li-ct Datasheet.



Disclaimer: Product images are for illustrative purposes only and may not be an exact representation of the products.
