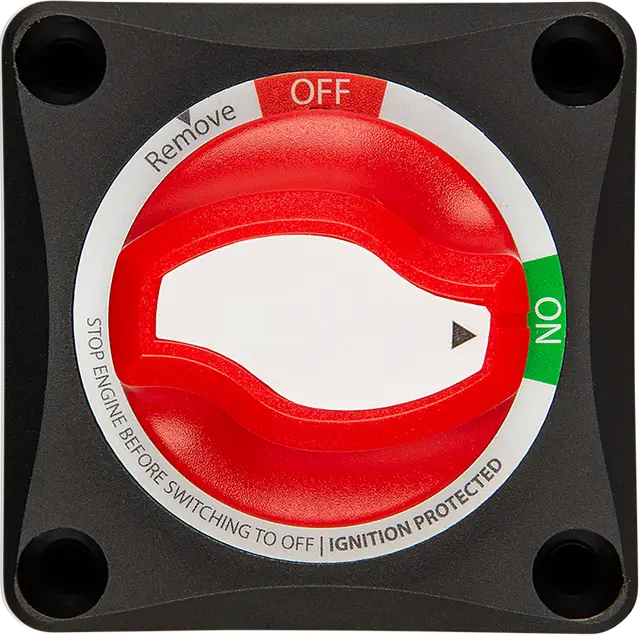

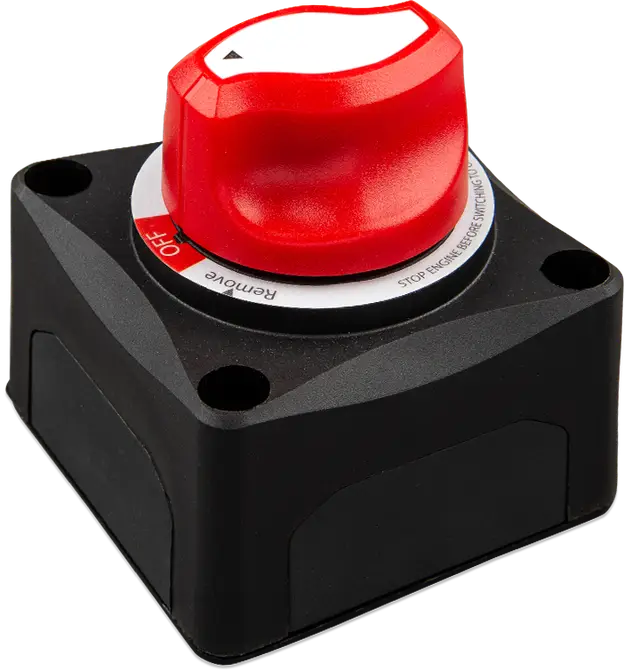

Victron Marine grade battery isolator switch. Suitable for battery systems up to 48VDC. 275A continuous rating.
Specification
| Recommended Torque |
70 lbf·inch / 8 N·m
|
| Mounting |
Surface or rear panel mount
|
| Voltage Rating |
48V
|
| Terminal Diameter |
3/8 inch / 9.53mm
|
| Cranking Rating |
1250A
|
| Hex Nut Material |
Tin-plated copper
|
| Terminal Material |
Tin-plated copper
|
| One Minute Rating |
455A
|
| Max. Continuous Current |
275A
|
Click here for Battery Switch ON/OFF Datasheet.
Disclaimer: Product images are for illustrative purposes only and may not be an exact representation of the products.
